ALLVIS

Allvis is our manual gangway option. It is 100% carbon fibre and is designed to be lightweight, sturdy and easy to use.

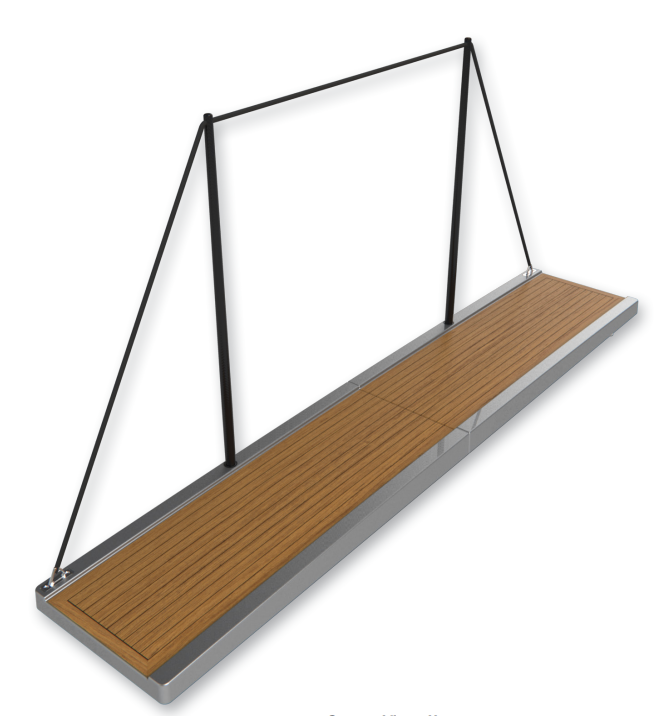

The product consists of a two-piece fold-out platform that receives carbon fibre stanchions linked by 10mm Dyneema rope. The gangway is fitted on one side with either one or two pins that locate into deck fittings, keeping the Allvis securely in place, and on the other end with a pair of wheels to ensure safe contact with the dock.

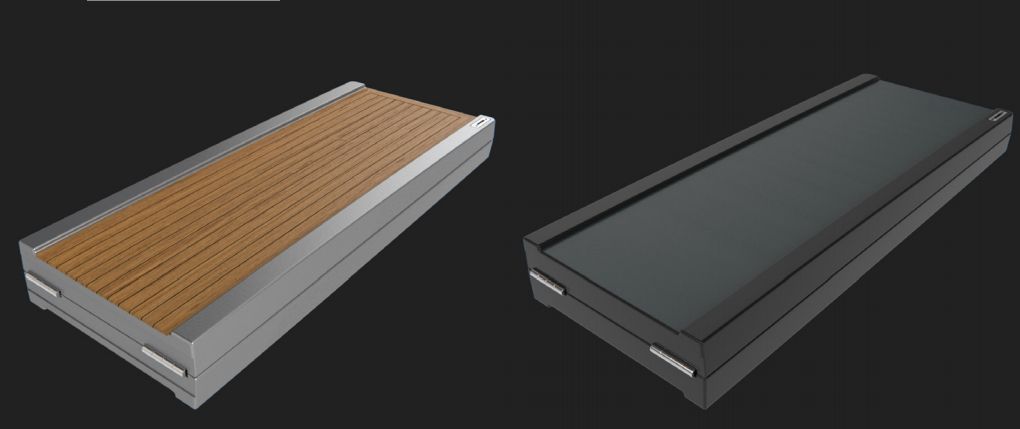

When you wish to stow the Allvis, simply unclip the rope, unplug the stanchions and the whole unit folds up like a wallet. The stanchions and rope store safely inside the folded up Allvis, which is then placed into its own custom bag for easy and compact stowage

Dimensions:
​
Length: Available in 2.5m and 3.5m as standard.
Custom lengths up to 10m can be accommodated.
Width: Customisable - maximum 1000mm

Specifications:
​
Material: 100% carbon fibre. Stanchions available in carbon fibre or stainless steel.
Finishes: Fully customisable to client’s needs, including colour and tread, plus any other required features.
Lead time for standard lengths: 8 weeks.

- Add two weeks for painting if required.
Warranty: 1 year.
Installation: DIY with personalised installation instructions from our factory.
